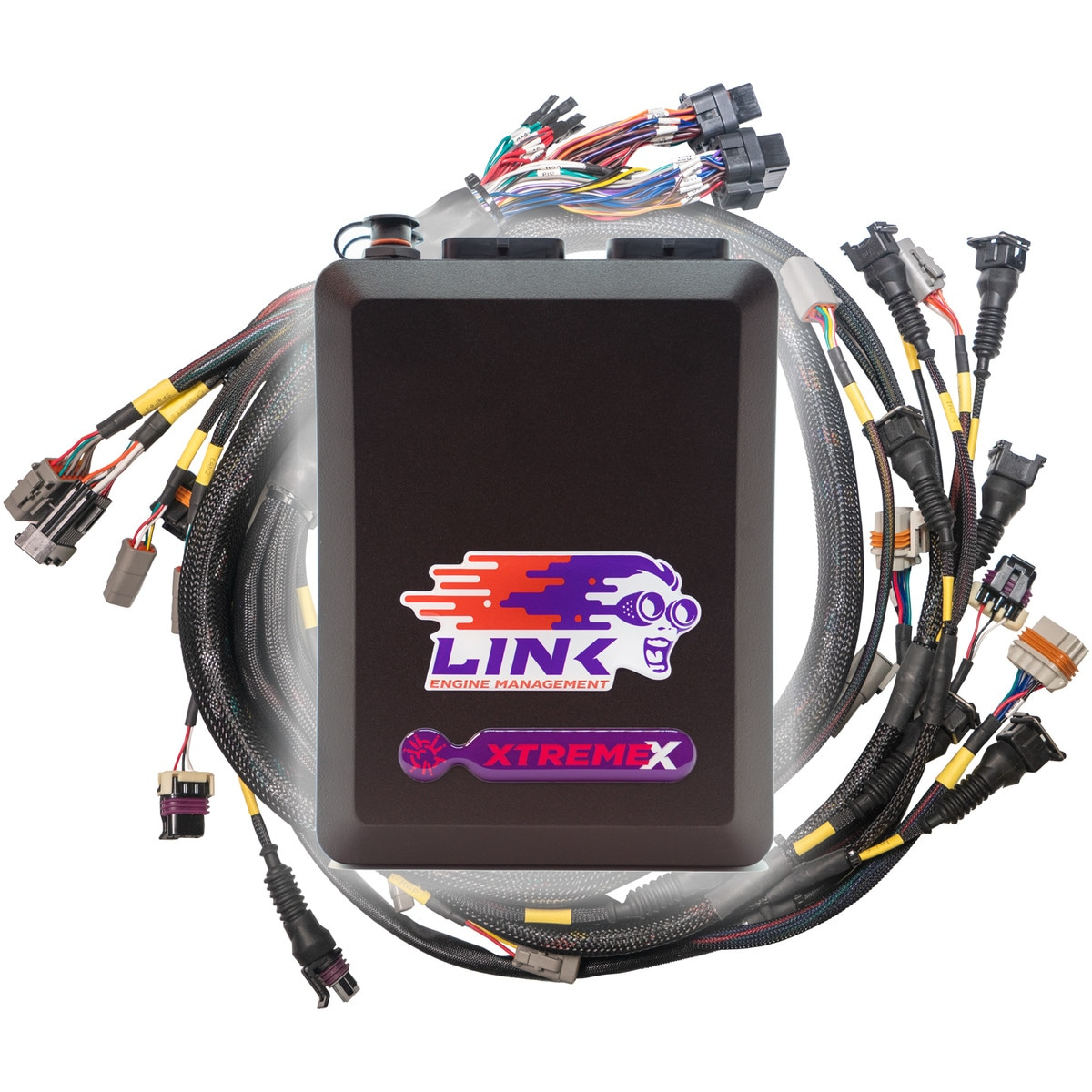

Link ECU - G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle

Link ECU - G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle

The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to your Drive-by-Wire/E-Throttle LS V8 engine.

Bundle Includes:

• G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives)

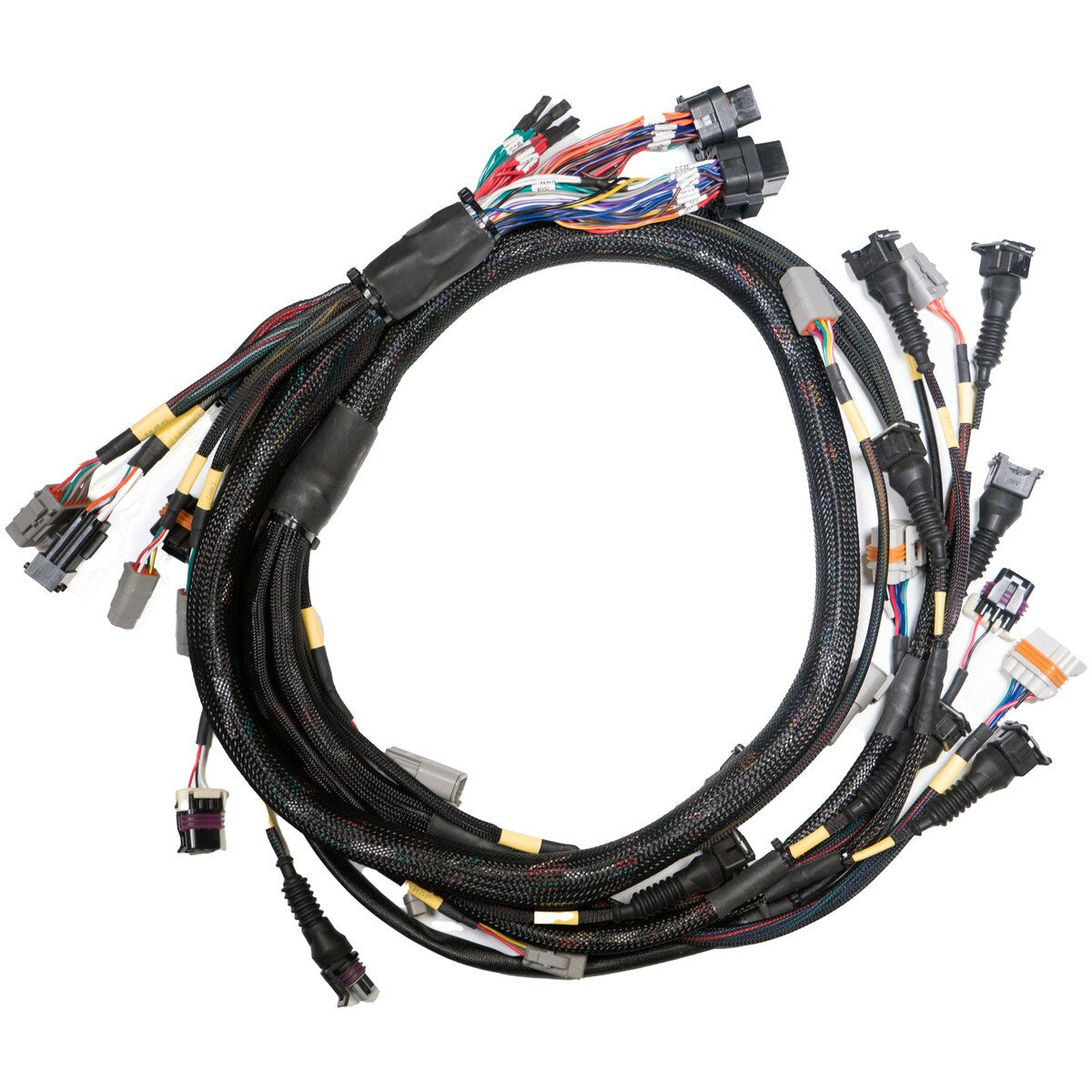

• Terminated Engine Harness GM LS GEN3/4*

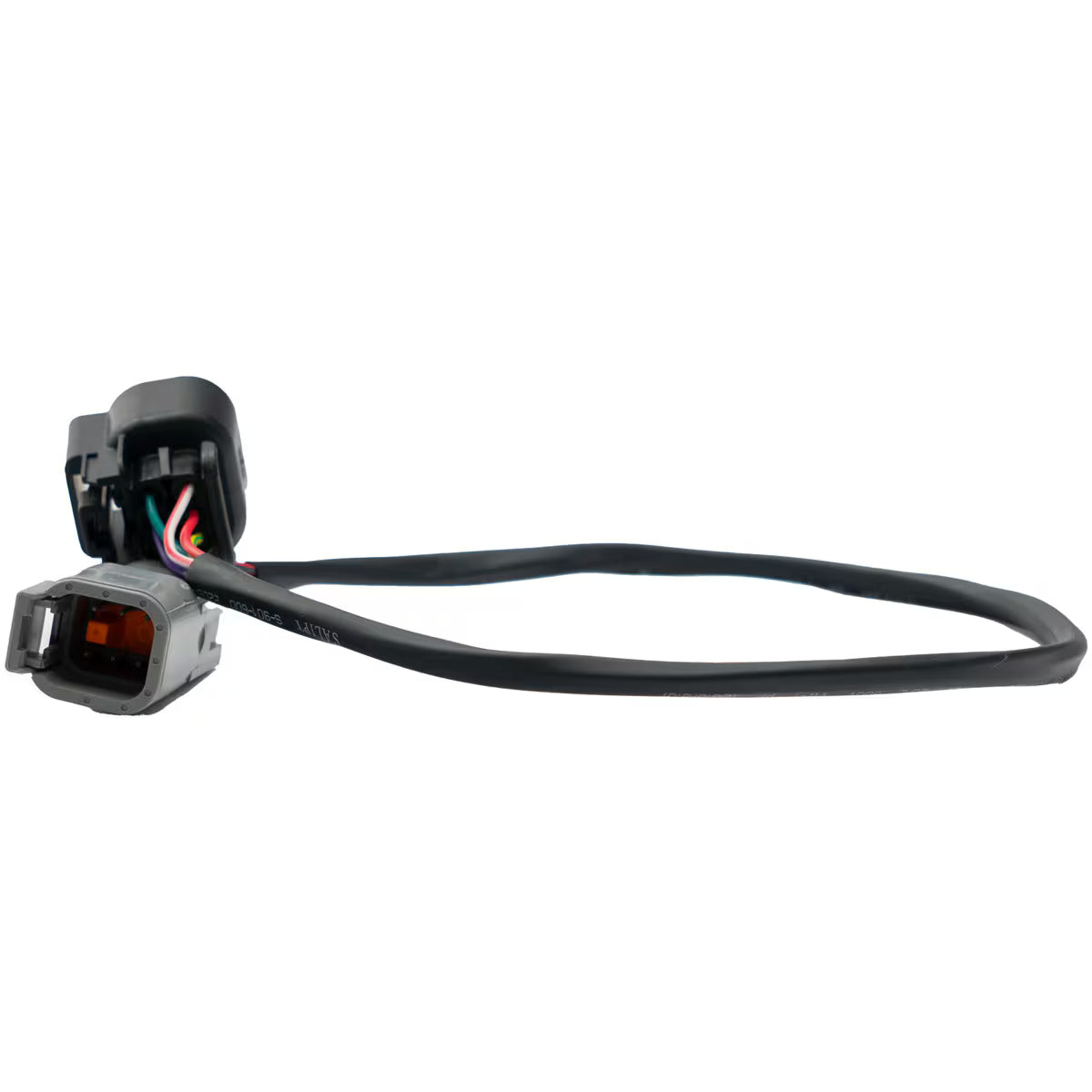

• LS DBW Adapter Loom

*Notes for use with Gen 4 Engines

• A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
• A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for details.
• Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
• To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
• To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)

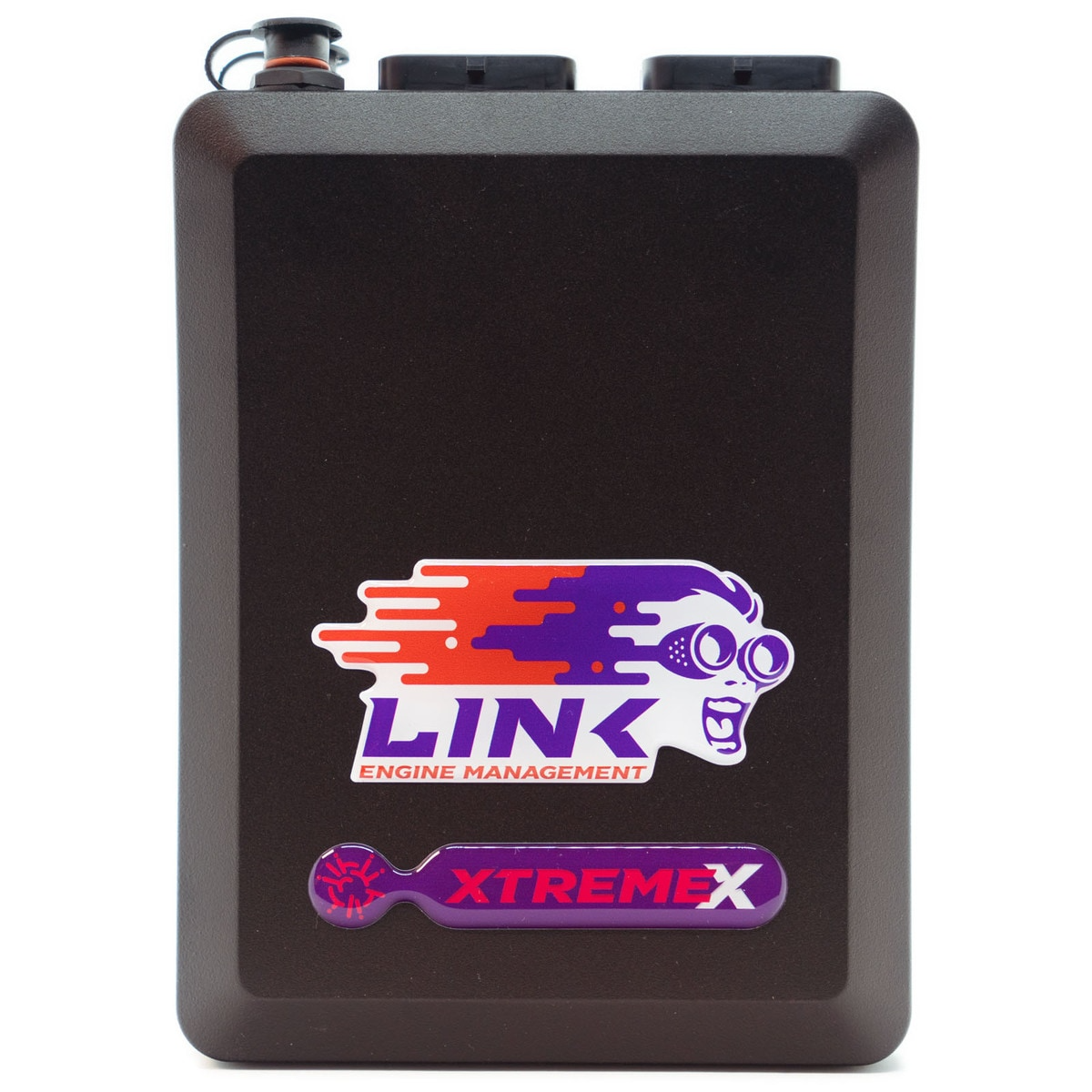

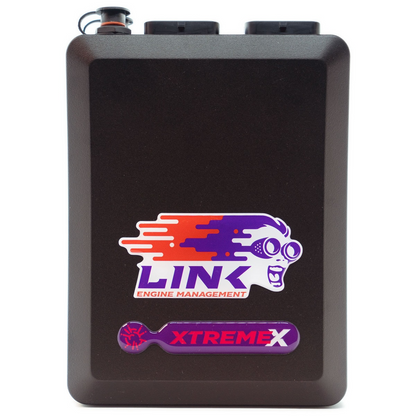

Link G4x ExtremeX -

The XtremeX is one of Link’s premium ECU’s with more inputs, outputs and features.

The XtremeX has built in E-throttle and all the advanced features including Anti-lag, Cruise Control and Traction Control.

With 8 Injector drives and 8 ignition drives the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsport or more demanding road car applications.

Please note: for peak & hold please contact a Link ECU Sales Person to purchase a G4+ Xtreme ECU.

Requires "A" & "B" Looms for installation.

If it is Onboard Digital Wideband Lambda Control you are after, consider the Fury.

Inputs
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
*2 inputs required when using 2nd CAN Bus

Outputs
8 x injection drives
8 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs

Communications
2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
Faster communications than G4+ models
512 Megabytes Data Logging

Physical
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams

Advanced features not found on the Storm:
Fully programmable E-throttle control complete with capability of gear shift throttle blip and antilag.

Cruise control.

Two independent CAN modules.

30 general purpose tables (up from 20)

All Motorsport features including full gear shift control, cruise control, traction control, antilag and launch control.

Advanced closed loop lambda strategy and dual bank lambda control.

What's in the box?
Supplied with USB tuning cable and mounting bracket.
